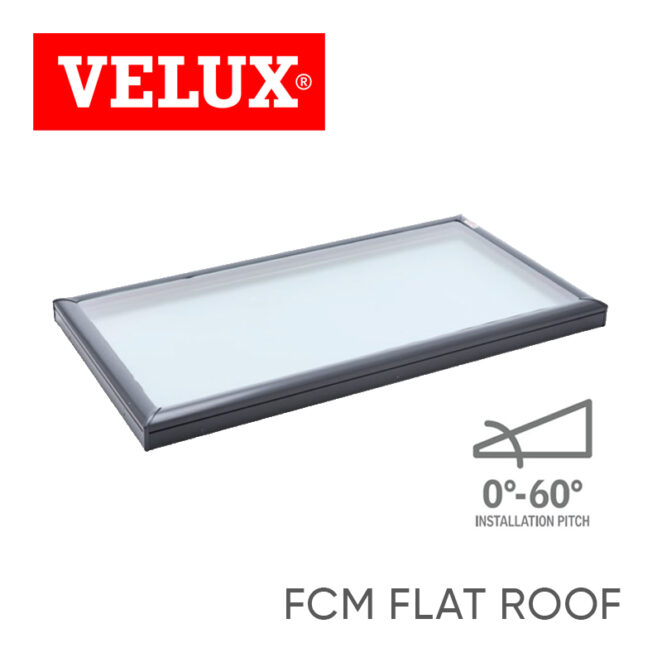

Velux FCM Fixed Skylight
The VELUX FCM Flat Roof FIXED non-openable skylight incorporates the VELUX High-performance laminated glazing unit and an all-metal exterior frame.
Key Product Facts
- Laminated glass will not fade or discolour over time – unlike acrylic or polycarbonate.
- Available in 11 sizes
- A maintenance-free anodized heavy-gauge aluminium frame withstands the extremes of the Australian climate.
- Versatile product that can be used on roofs between 0-60° in pitch*
- Can be used in portrait, landscape or even “diamond shape” orientation**
- High-Performance double glazing as standard; with NEAT™ coating.
- 10-year guarantee.
- Requires Custom-Made Flashings sold separately.
Categories: Fixed Skylights, Roof Skylights
- Product Information
- Glazing Information
- Brochures & Data Sheets
- Additional information
- Laminated glass will not fade or discolour over time – unlike acrylic or polycarbonate.
- Available in 11 sizes
- Maintenance-free anodized heavy-gauge aluminium frame withstands the extremes of the Australian climate.
- Versatile product that can be used on roofs between 0-60° in pitch*
- Can be used in portrait, landscape or even “diamond shape” orientation**
- High-Performance double glazing as standard – blocks approx 70% of radiant heat and gives 99% protection from UV rays
- Requires custom-made flashing (not supplied).
- 10 year guarantee.
Ideal replacements for old acrylic domes
- Superior product for a similar price.
- High-Performance glazing: Laminated inner pane, toughened outer pane.
- 3 skylight sizes can be used as direct replacements# for standard 400x800mm, 600x800mm and 900x900mm domes.
Flashing: VELUX FCM Fixed Skylights require a Custom Made Flashing that is sold separately. CONTACT US and we can assist in the design, manufacture and supply of one for you.
velux-aus-sept-2023-brochure
Click hereVelux-FCM-Flat-Roof-Skylight-Installation
Click herefcm-product-sheet-sept-2022
Click hereAdditional information

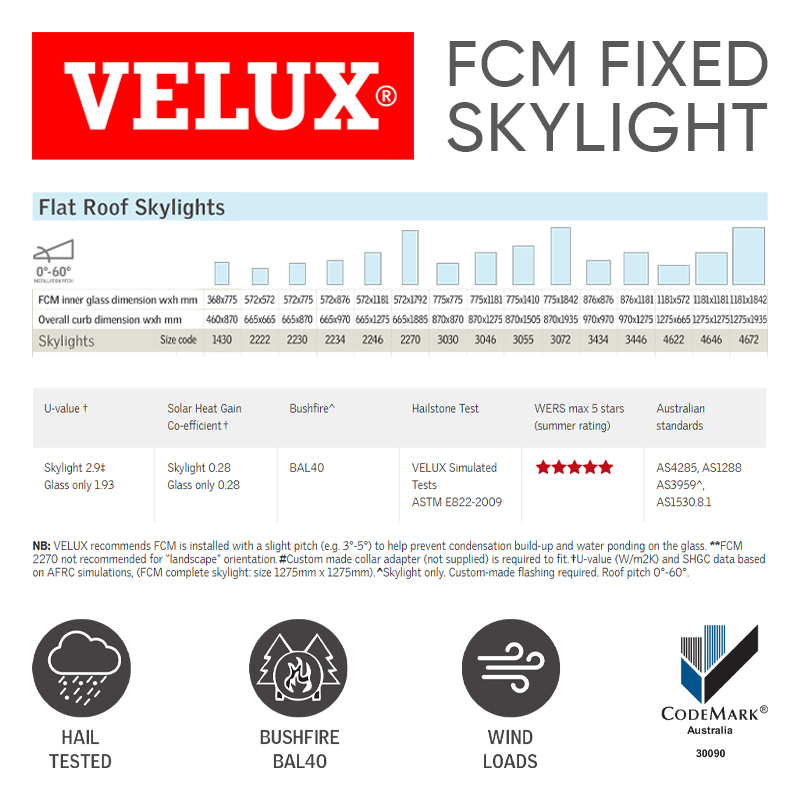

Size | 1430 – 460mm (W) x 870mm (L) Overall Throat, 2222 – 665mm (W) x 665mm (L) Overall Throat, 2230 – 665mm (W) x 870mm (L) Overall Throat, 2234 – 665mm (W) x 970mm (L) Overall Throat, 2246 – 665mm (W) x 1275mm (L) Overall Throat, 2270 – 665m (W) x 1885mm (L) Overall Throat, 3030 – 870mm (W) x 870mm (L) Overall Throat, 3046 – 870mm (W) x 1275mm (L) Overall Throat, 3072 – 870mm (W) x 1935mm (L) Overall Throat, 3434 – 970mm (W) x 970mm (L) Overall Throat, 3446 – 970mm (W) x 1275mm (L) Overall Throat, 4646 – 1275mm (W) x 1275mm (L) Overall Throat, 4672 – 1275mm (L) x 1935mm (W) Overall Throat |
---|
